Products Autolock Tool Selection INCH

Tool Range H & J

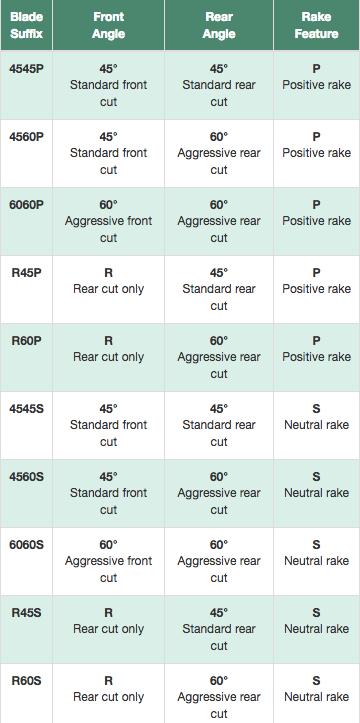

Blade Suffix & Configuration

R = Rear Cut only
S = Standard Neutral Rake
Best for high carbon, alloy, cast iron
P = Positive Rake
Best for stainless, low carbon, aluminum

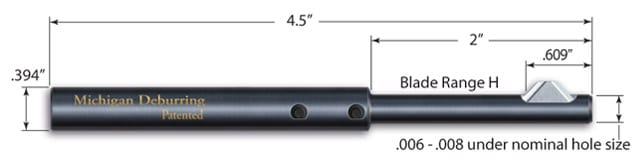

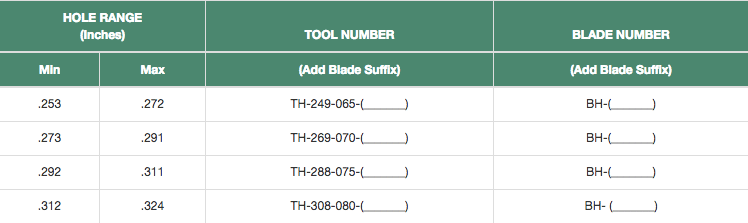

Tool Range H - For holes .253" to .324"

All measurements shown in inches.

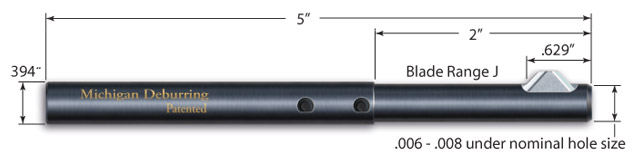

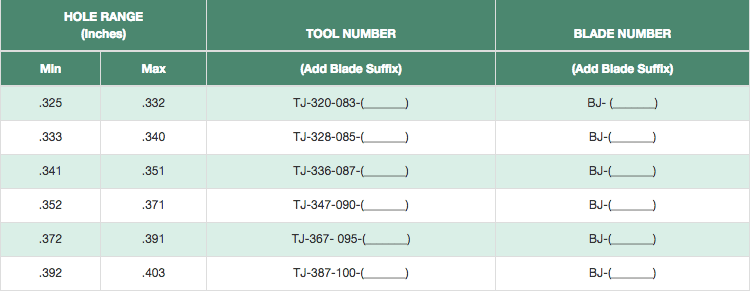

Tool Range J1 - For holes .325" to .403"

All measurements shown in inches.

Tool Range J2 - For holes .404" to .509"

All measurements shown in inches.

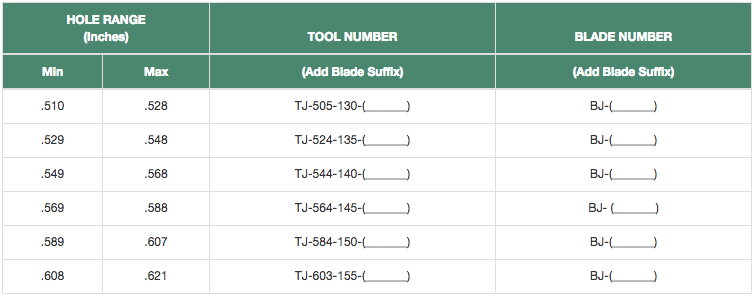

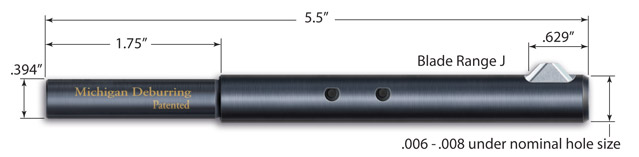

Tool Range J3 - For holes .510" to .621"

All measurements shown in inches.

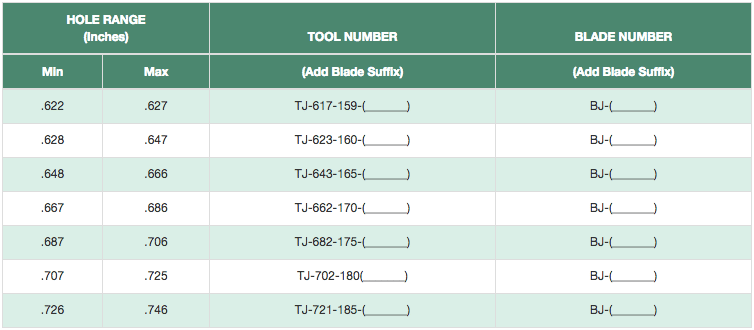

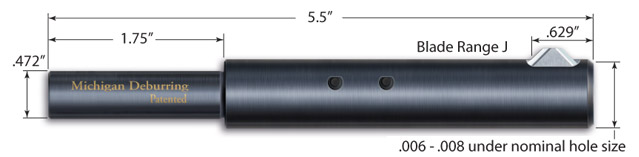

Tool Range J4 - For holes .622" to .746"

All measurements shown in inches.

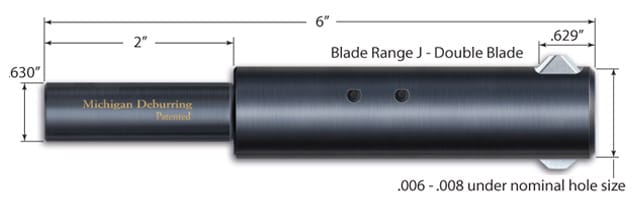

Tool Range J5 - For holes .747" to .884"

All measurements shown in inches.

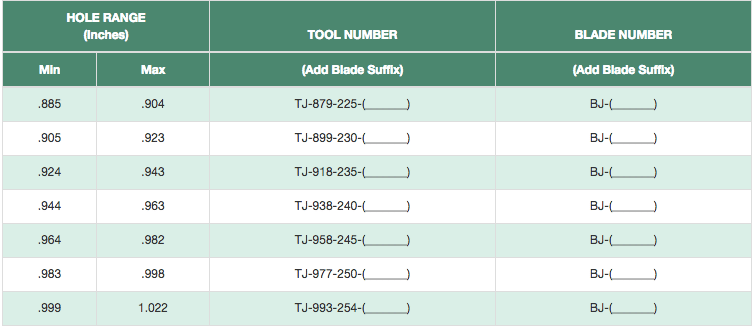

Tool Range J6 - For holes .885" to 1.022"

All measurements shown in inches.
