Products Autolock Tool Selection mm

Tool Range H & J

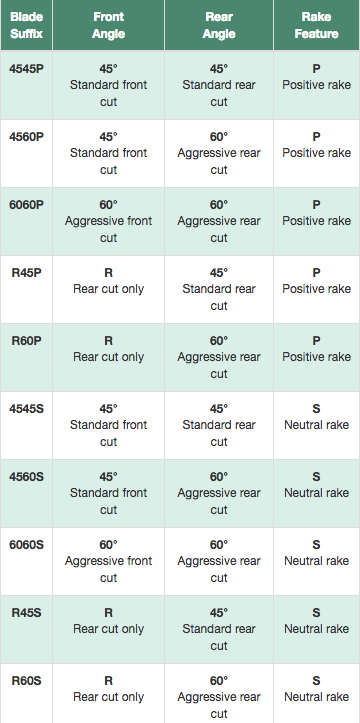

Blade Suffix & Configuration

R = Rear Cut only
S = Standard Neutral Rake
Best for high carbon, alloy, cast iron
P = Positive Rake
Best for stainless, low carbon, aluminum

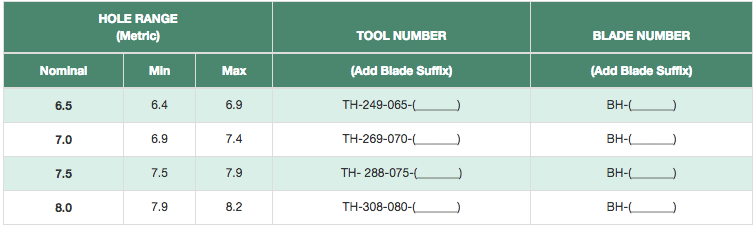

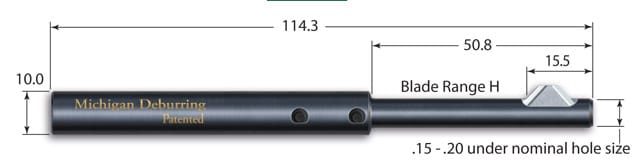

Tool Range H – For holes 6.4mm to 8.2mm

All measurements shown in mm.

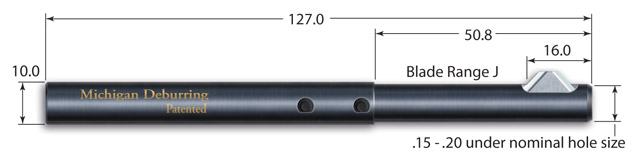

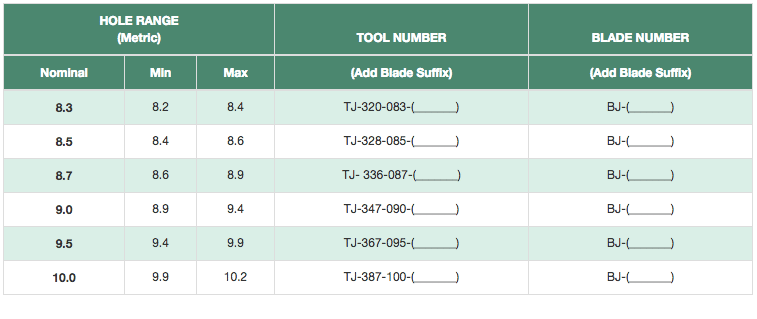

Tool Range J1 – For holes 8.2mm to 10.2mm

All measurements shown in mm.

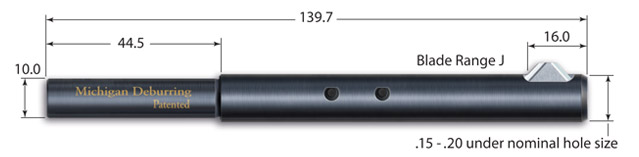

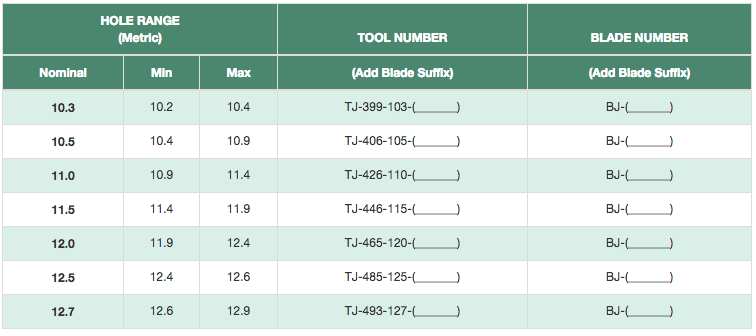

Tool Range J2 – For holes 10.2mm to 12.9mm

All measurements shown in mm.

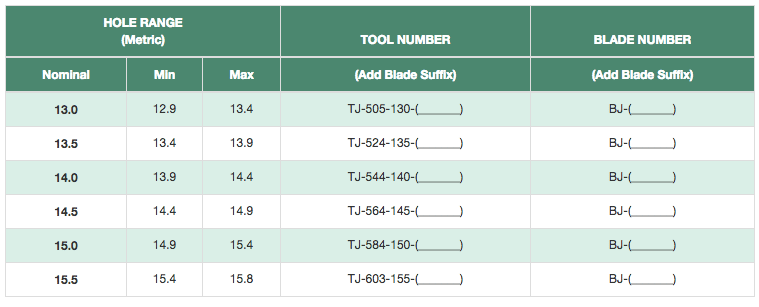

Tool Range J3 – For holes 12.9mm to 15.8mm

All measurements shown in mm.

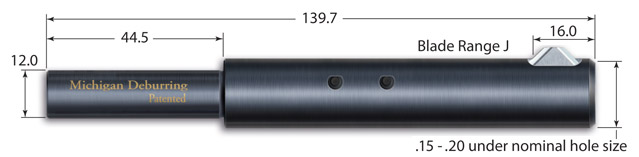

Tool Range J4 – For holes 15.8mm to 18.9mm

All measurements shown in mm.

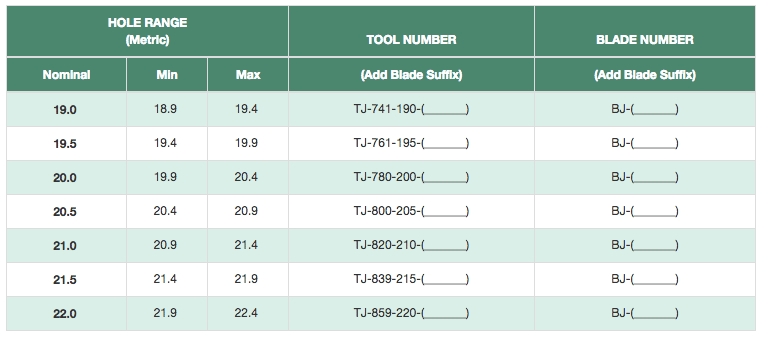

Tool Range J5 – For holes 18.9mm to 22.4mm

All measurements shown in mm.

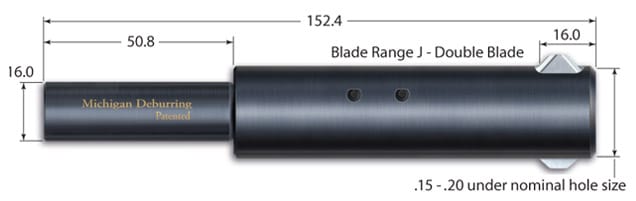

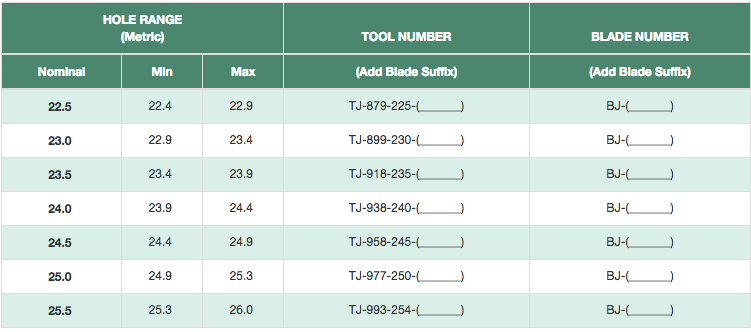

Tool Range J6 – For holes 22.4mm to 26.0mm

All measurements shown in mm.
