Products modular deburring tool selection
(mm)

Tool Range A-C:

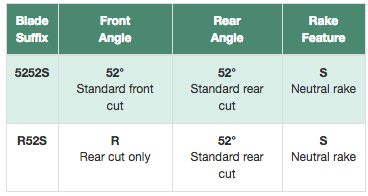

Blade Suffix & Configuration

R = Rear Cut only
S = Standard Neutral Rake
Best for high carbon, alloy, cast iron

Tool Range A – For holes 1.45mm to 1.75mm

All measurements shown in mm

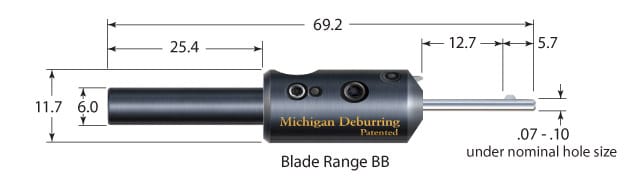

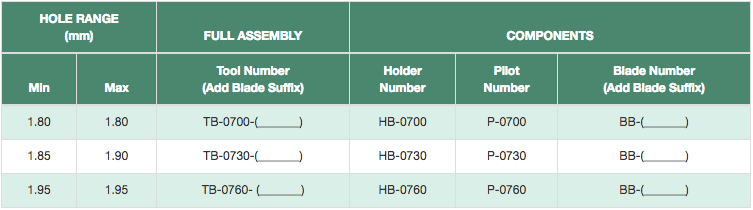

Tool Range B – For holes 1.80mm to 1.95mm

All measurements shown in mm.

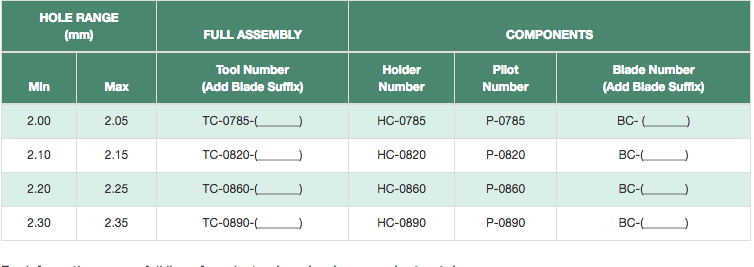

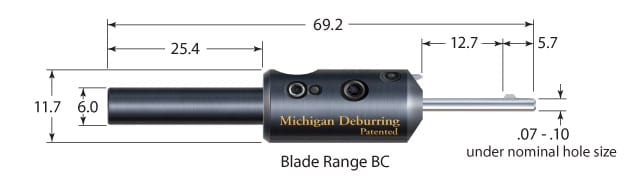

Tool Range C – For holes 2.00mm to 2.35mm

All measurements shown in mm

Tool Range D-G:

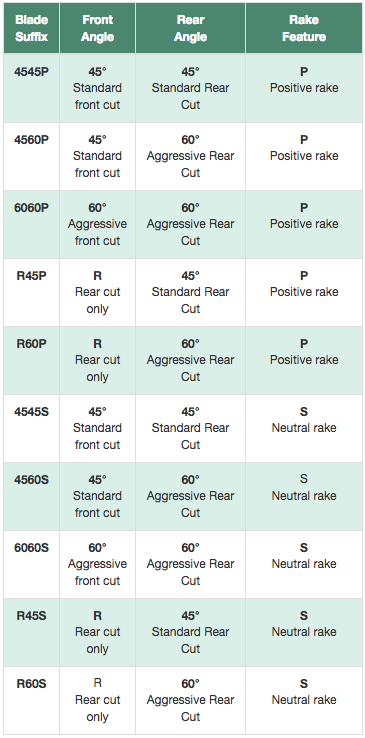

Blade Suffix & Configuration

R = Rear Cut only
S = Standard Neutral Rake
Best for high carbon, alloy, cast iron
P = Positive Rake
Best for stainless, low carbon, aluminum

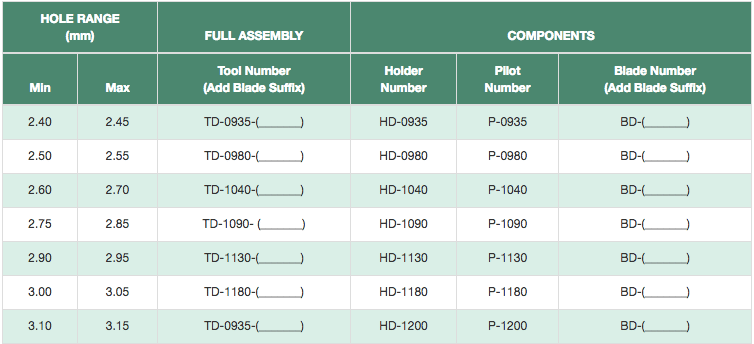

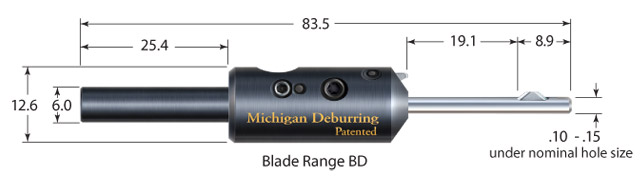

Tool Range D – For holes 2.40mm to 3.15mm

All measurements shown in mm.

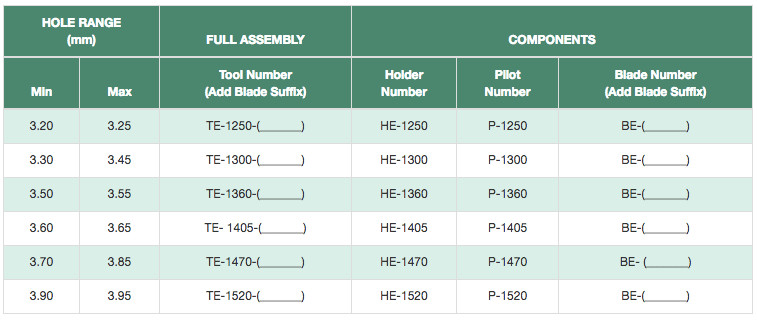

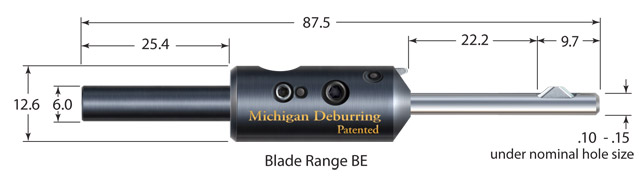

Tool Range E – For holes 3.20mm to 3.95mm

All measurements shown in mm.

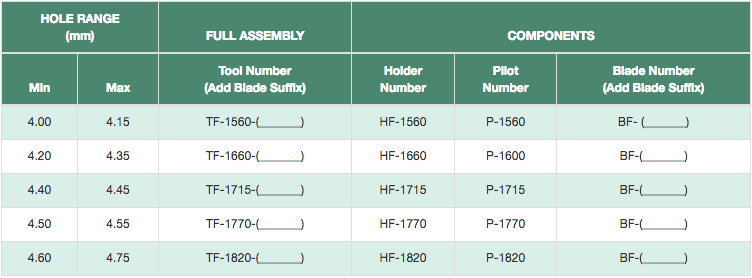

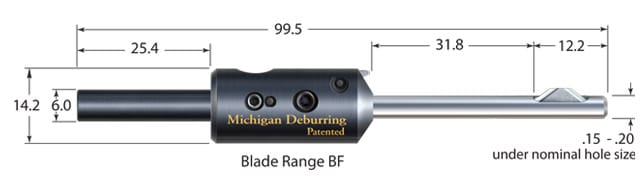

Tool Range F – For holes 4.00mm to 4.75mm

All measurements shown in mm.

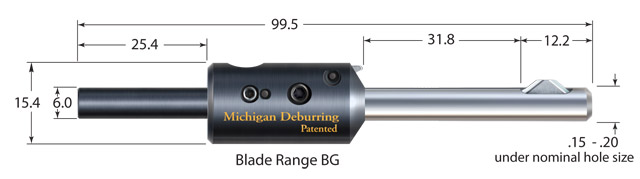

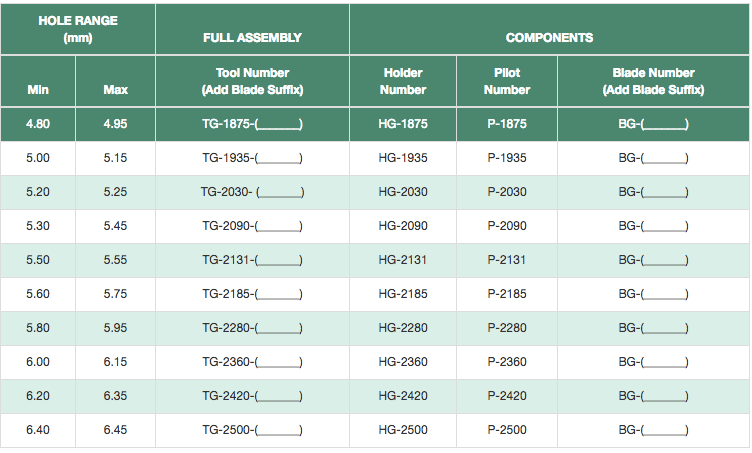

Tool Range G – For holes 4.80mm to 6.45mm

All measurements shown in mm.
