Products modular deburring tool selection
(INCH)

Tool Range A-C:

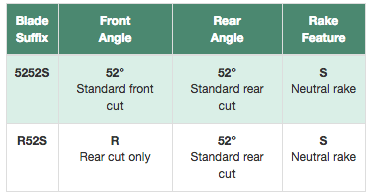

Blade Suffix & Configuration

R = Rear Cut only
S = Standard Neutral Rake
Best for high carbon, alloy, cast iron

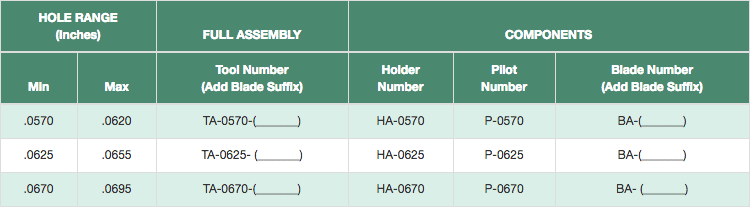

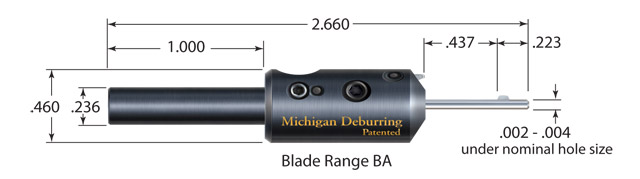

Tool Range A – For holes .057″ to .069″

All measurements shown in inches.

Tool Range B – For holes .070″ to .078″

All measurements shown in inches.

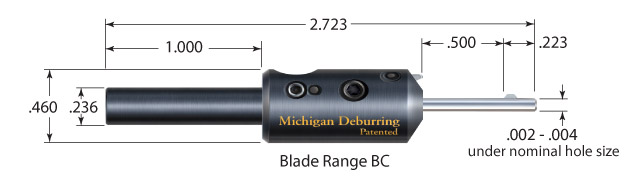

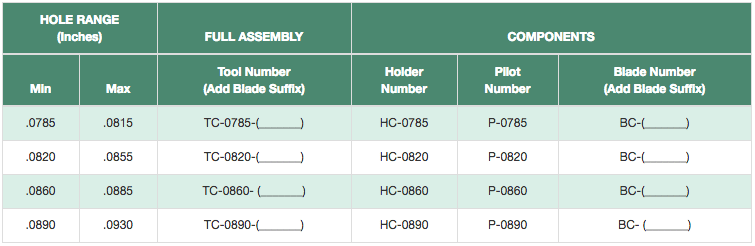

Tool Range C – For holes .079″ to .093″

All measurements shown in inches

Tool Range D-G:

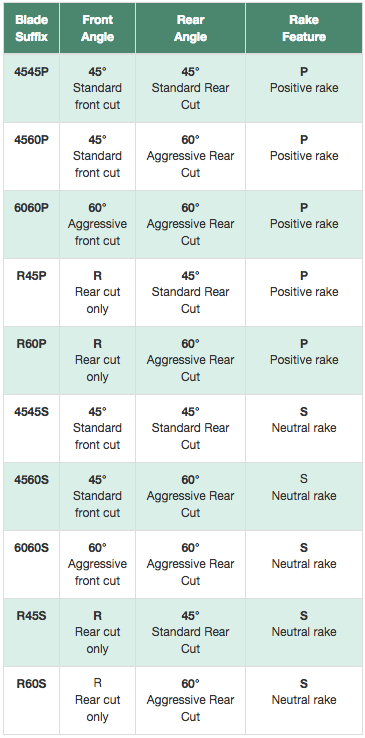

Blade Suffix & Configuration

R = Rear Cut only
S = Standard Neutral Rake
Best for high carbon, alloy, cast iron
P = Positive Rake
Best for stainless, low carbon, aluminum

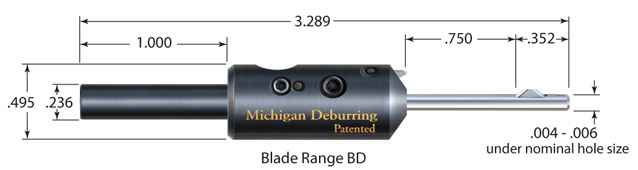

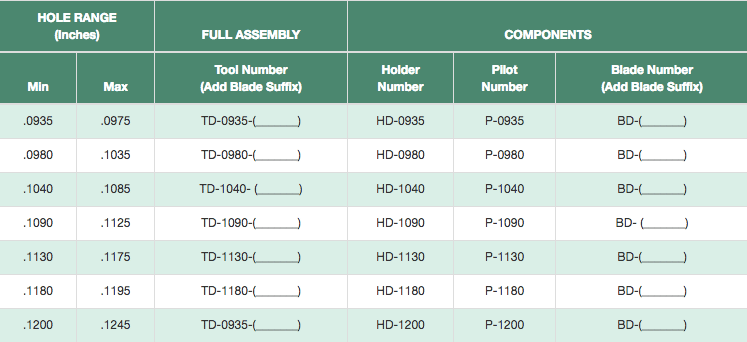

Tool Range D – For holes .094″ to .127″

All measurements shown in inches.

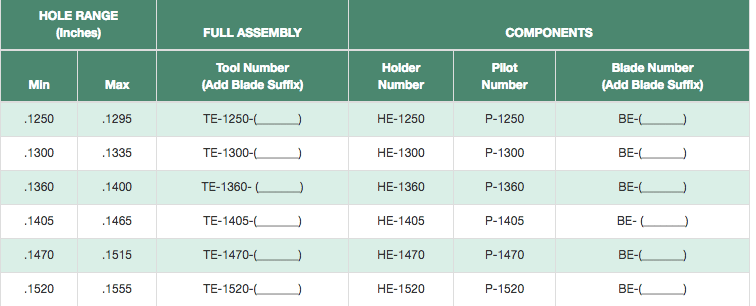

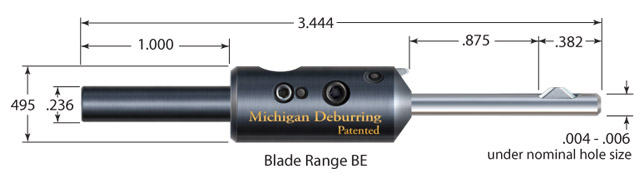

Tool Range E – For holes .125″ to .155″

All measurements shown in inches.

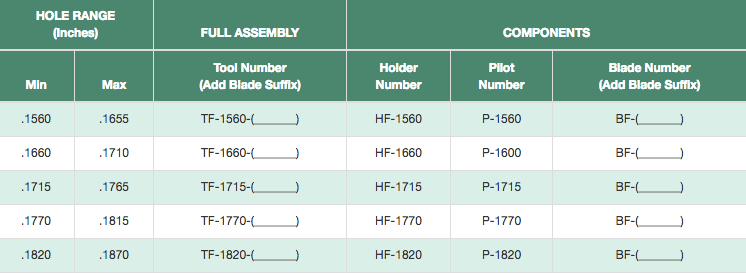

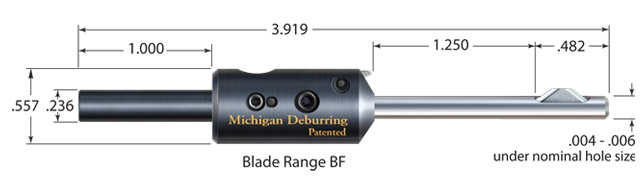

Tool Range F – For holes .156″ to .187″

All measurements shown in inches.

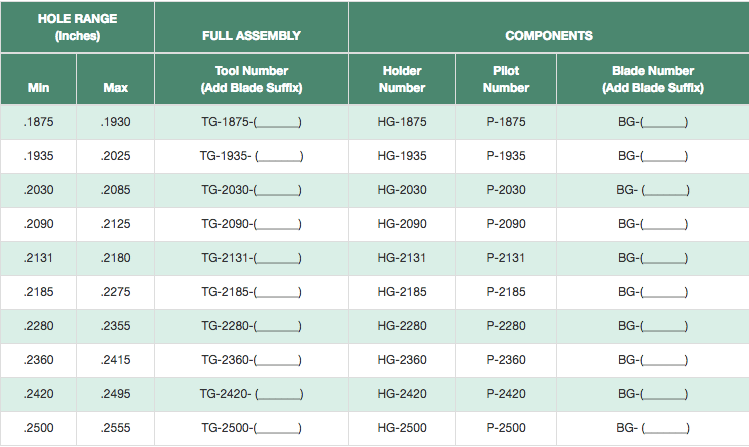

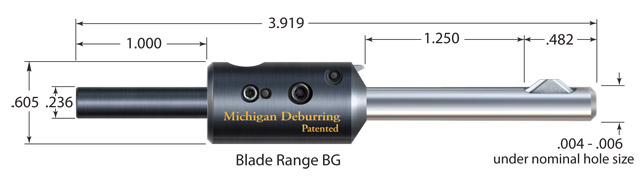

Tool Range G – For holes .187″ to .255″

All measurements shown in inches.
